Internal Combustion Flexible Shaft Tamping Machine - Railway Tamping Machine Tutorial

Date: 2022-03-23 Browse: 12208

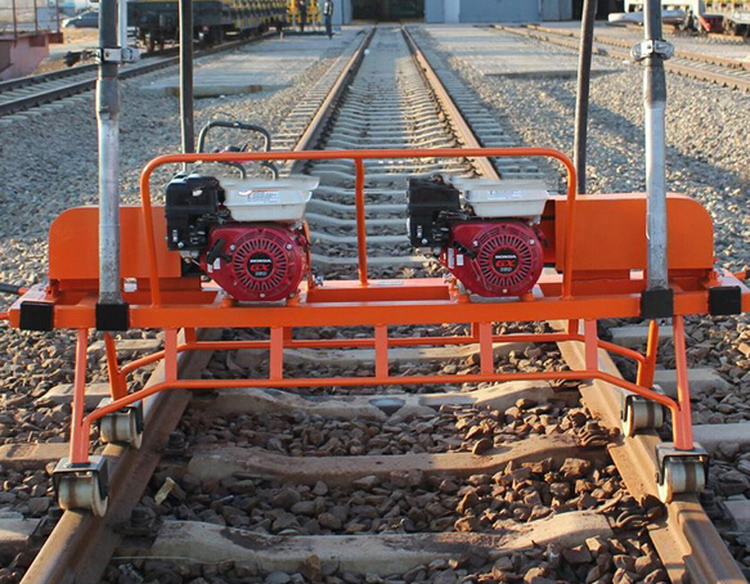

The internal combustion flexible shaft tamping machine is suitable for any rail-rail type railway line maintenance ballast tamping operation. It is characterized by easy operation. It has low failure rate, convenient maintenance, fast running speed and strong applicability. It can not only tamper the line but also the turnout, which is suitable for the needs of railway ballast tamping operation. It mainly consists of internal combustion engine, pulley cover, pulley, bearing fixing frame, flexible shaft outer fixing sleeve, two flexible shaft inner fixing sleeves, bottom frame, vibrating body, running wheel, flexible shaft outer fixing sleeve pin, flexible shaft inner fixing key composition.

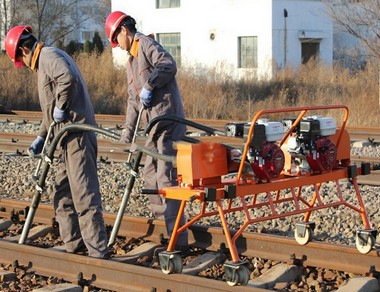

When using the internal combustion flexible shaft tamping machine, first add an appropriate amount of oil and gasoline to the internal combustion gasoline engine. Then, before the gasoline engine is started, install the vibrating body on the main body of the tamping machine, and then align the groove of the flexible shaft core of the vibrating body with the fixed key in the fixed sleeve of one of the flexible shafts and insert it. The groove of the outer casing of the vibrating body is only required to be aligned with the pin hole of the outer fixing sleeve of the flexible shaft. Then insert the outer fixing sleeve pin of the flexible shaft, and so on, and install the other three pieces on the main body of the tamping machine. Start the gasoline engine, increase the throttle, and check whether the vibrating body vibrates. If it does not vibrate, pick up the vibrating body with both hands and tap the pick several times on the concrete sleeper to vibrate. When the vibrating body is vibrating, hold the handle of the vibrating body with both hands and start tamping, (remember: do not tamper with hard objects). After the tamping is completed, reduce the gasoline engine throttle, then turn off the switch, and insert the pick claws of the vibrating body into the respective sockets of the bottom frame. Check whether all parts of the tamping machine are loose and whether the screws are fastened. In long-term storage, pay attention to start the gasoline engine first, and then close the fuel valve, so that the gasoline engine idles until it automatically turns off, (use up the fuel in the carburetor to prevent impurities in the gasoline from being stored in the carburetor for a long time, causing carburetor) blockage). During the transportation of the tamping machine, gasoline and oil must be drained to prevent danger. Pay attention to moisture-proof and moisture-proof during storage.
