2022 Steel Rail Selection Guide: International Standard, Features, Applications

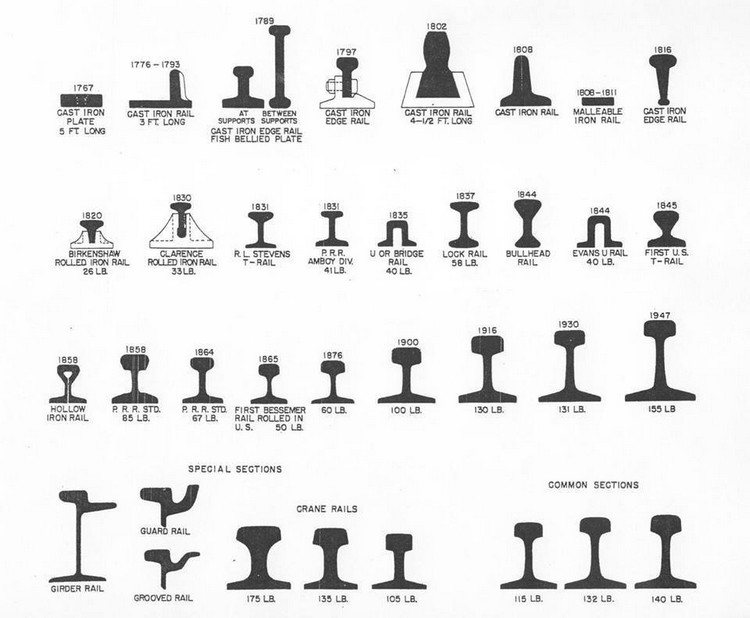

Steel rail:

Steel rail mainly used to guide the train wheels far forwarding which is the main part of railway track components.The categories of rails are divided into: light rail, heavy rail, Crane Rail. Its function is to guide the locomotive wheels of the vehicle to go forwards, bear the huge pressure of the wheel, and is installed on the sleeper. What's more, the track rail must be continuous, smooth. Steel rail is mainly used in the train, the high-speed rail, the subway and the urban traffic road construction. Also can be used for workshop, coal,gold iron ore, ect.



Due to high quality and competitive prices, our rails have been exported to over 50 countries, including Mongolia, America, Brazil, Canada, Germany, Britain, Spain, Belgium, Poland, India, Thailand, Malaysia, and Sudan, etc.

In order to ensure better quality, the steel rails have to undergo various tests, such as chemical composition test, tensile strength test, hardness test and drop weight test.



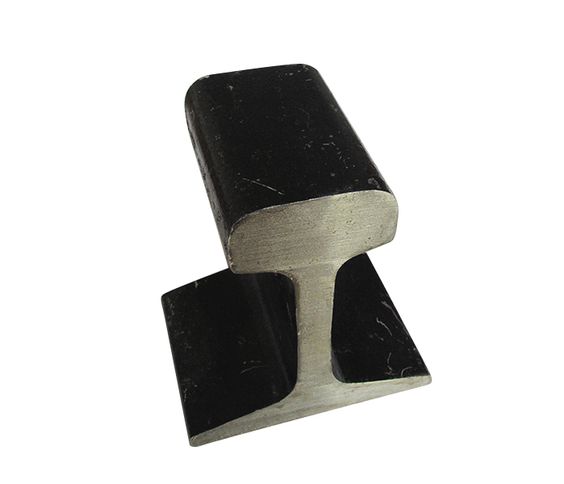

Light Steel Rail 8kg-30kg:



Light rails: 6kg/m,9kg/m,12kg/m,15kg/m,18kg/m,22kg/m, 24k/mg, 30kg/m
Material: Q235B / 50Q / 55Q
Length of each piece: 6m~12m
Executive standard: refer to GB11264-89

Standard:GB11264-89
size		Head(mm)	Height (mm)		Bottom (mm)	Web (mm)	Weight (kg/m)		Material (mm)	Length (mm)
GB6KG		25.4	50.8		50.8	4.76	5.98		Q235B	6-12
GB9KG		32.1	63.5		63.5	5.9	8.94		Q235B	6-12
GB12KG		38.1	69.85		69.85	7.54	12.2		Q235B/55Q	6-12
GB15KG		42.86	79.37		79.37	8.33	15.2		Q235B/55Q	6-12
GB22KG		50.3	93.66		93.66	10.72	22.3		Q235B/55Q	6-12
GB30KG		60.33	107.95		107.95	12.3	30.1		Q235B/55Q	6-12
Standard:YB222-63
8KG	25			65	54	7	8.42	Q235B		6-12
18KG	40			90	80	10	18.06	Q235B/55Q		6-12
24KG	51			107	92	10.9	24.46	Q235B/55Q		6-12



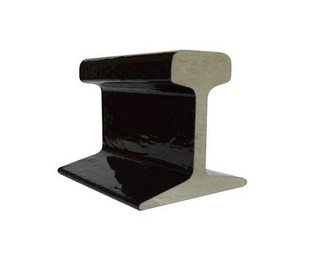

Heavy Steel Rail 38kg-60kg:

Heavy rails: 38kg/m, 43kg/m, 50kg/m, 60kg/m
Material: U71Mn / 50Mn / 44Mn
Length of each piece: 12m,12.5m
Executive standard: refer to GB2585-2007

Standard:GB2585-2007
Model	Head  width	Rail  height	Web  Thickness	Bottom  Width	Weight	Material	Rail length
38kg/m	68mm	134mm	13mm	114mm	38.733 kg/m	U71Mn/U71 /45Mn	12,12.5m
43kg/m	70mm	140mm	14.5mm	114mm	44.653 kg/m	U71Mn/U71 /45Mn	12,12.5m
50kg/m	70mm	152mm	15.5mm	132mm	51.514 kg/m	U71Mn/U71 /45Mn	12,12.5m
60kg/m	73mm	176mm	16.5mm	150mm	60kg/m	U71Mn/U71 /45Mn	12,12.5m



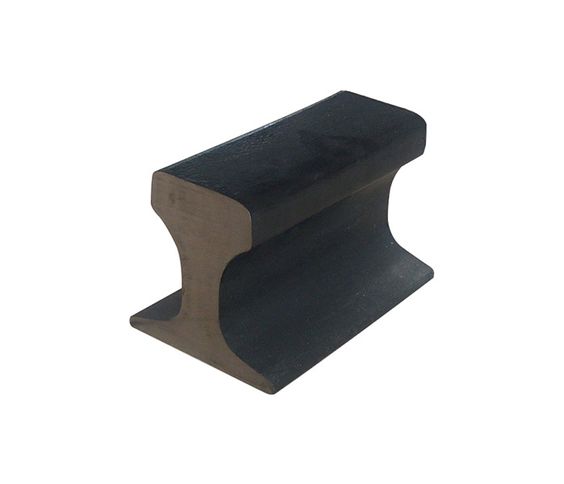

Crane Rail QU70- QU120:

Crane rails: QU70,QU80,QU100,QU120

Material: U71Mn
Length of each piece: 12m,12.5m
Executive standard: refer to GB3426-82

Mode	Size mm AXBXCXD	Weight(kg/m)	Length(m)
QU70	120x120x70x28	52.80	9/9.5/1010.5/11/11.512/12..5m
QU80	130x130x80x32	63.69	9/9.5/1010.5/11/11.512/12..5m
QU100	150x150x100x38	88.96	9/9.5/1010.5/11/11.512/12..5m
QU120	170x170x120x44	118.10	9/9.5/1010.5/11/11.512/12..5m



International Standard Rail:

China Standard Railway Steel Rail Crane Steel Rail

Size	Dimension(mm)				Weight（kg/m)	Material (mm)	Length (m)
	Head (mm)	Height（mm)	Bottom (mm)	Web (mm)
15KG	41.28	76.2	76.2	7.54	14.905	700	9
22KG	50.01	95.25	96.25	9.92	22.542	700	9
30KG	57.15	109.54	109.54	11.5	30.25	900A	9
40KG	63.5	127	127	14	40.31	900A	9~25
48KG	68	150	127	15	47.6	900A	9~25
57KG	71.2	165	140	16	57.4	900A	9~25

DIN Standard Mining Railway Track Steel Rail

Size	Dimension(mm)				Weight（kg/m)	Material (mm)	Length (m)
	Head (mm)	Height（mm)	Bottom (mm)	Web (mm)
A55	55	65	150	31	31.8	700	10-12
A65	65	75	175	38	43.1	700	10-12
A75	75	85	200	45	56.2	900A	10-12
A100	100	200	200	60	74.3	900A	10-12
A120	120	220	220	72	100	900A	10-12

UIC860 Standard Railway Steel Rail Track

Size	Dimension(mm)				Weight（kg/m)	Material (mm)	Length (m)
	Head (mm)	Height（mm)	Bottom (mm)	Web (mm)
UIC50	70	152	125	15	50.46	900A/1100	12-25
UIC54	70	159	140	16	54.43	900A/1100	12-25
UIC60	74.3	172	150	16.5	60.21	900A/1100	12-25

BS Standard Steel Rail Track Mine Rail

Size	Dimension(mm)				Weight（kg/m)	Material (mm)	Length (m)
	Head (mm)	Height（mm)	Bottom (mm)	Web (mm)
50 O	52.39	100.01	100.01	10.32	24.833	700	6-18
60A	57.15	114.3	109.54	11.11	30.618	700	6-18
75R	61.91	128.59	114.3	12.7	37.455	700	8-25
75R	61.91	128.59	122.24	13.1	37.041	700	8-25
80A	63.5	133.35	117.47	13.1	39.761	900A-1100	8-25
80R	63.5	133.35	127	13.49	39.674	900A-1100	8-25
90A	66.67	142.88	127	13.89	45.099	900A-1100	8-25
100A	69.85	152.4	133.36	15.08	50.182	900A-1100	8-25
113A	69.85	158.75	139.7	20	56.398	900A-1100	8-25

EN Standard Steel Rail Railway Rail Track

Size	Dimension(mm)				Weight（kg/m)	Material (mm)	Length (m)
	Head (mm)	Height（mm)	Bottom (mm)	Web (mm)
49E1	67	149	125	14	49.39	R260/R350HT	12-25
49E2	67	148	125	14	49.1	R260/R350HT	12-25
50E1	65	153	134	15.5	50.37	R260/R350HT	12-25
50E2	72	151	140	15	49.97	R260/R350HT	12-25
50E4	70	148	125	15	50.46	R260/R350HT	12-25
50E5	67	148	135	14	49.9	R260/R350HT	12-25
50E6	65	153	140	15.5	50.9	R260/R350HT	12-25
54E1	70	159	140	16	54.77	R260/R350HT	12-25
54E2	67.01	164	125	16	53.82	R260/R350HT	12-25
54E3	67	154	125	16	54.57	R260/R350HT	12-25
55E1	62	155	134	19	56.03	R260/R350HT	12-25
60E1	72	172	150	16.5	60.21	R260/R350HT	12-25

JIS Standard Steel Rail Railway Steel Crane Rail

Size	Dimension(mm)				Weight（kg/m)	Length (m)
	Head (mm)	Height（mm)	Bottom (mm)	Web (mm)
JIS15KG	42.86	79.37	79.37	8.33	15.2	9-10
JIS22KG	50.8	93.66	93.66	10.72	22.3	9-10
JIS30KG	60.33	107.95	107.95	12.3	30.1	9-10
JIS37A	62.71	122.24	122.24	13.49	37.2	10-25
JIS57N	65	153	127	15	50.4	10-25
CR73	100	135	140	32	73.3	10-25
CR100	120	150	155	39	100.2	10-12

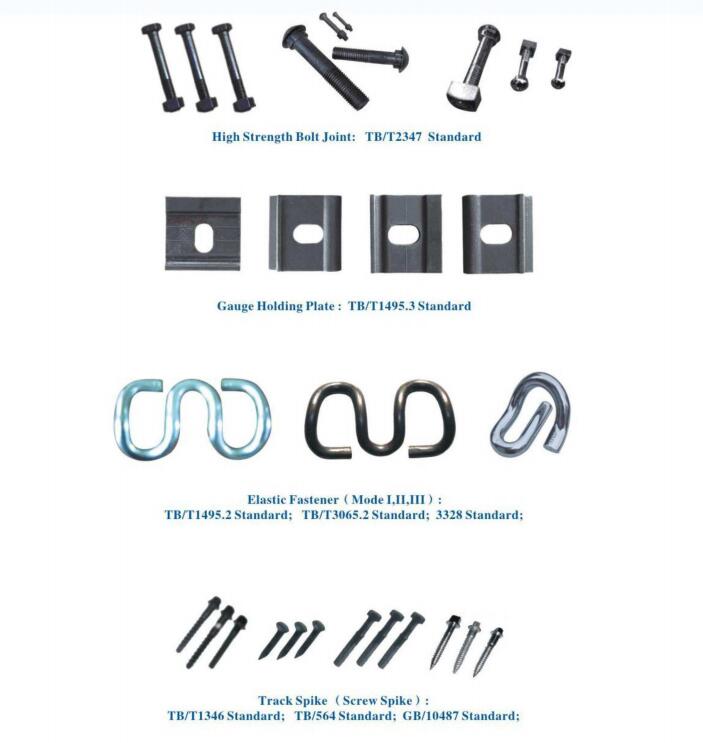

Other Accessories:
