Rail Catcher Automatic Anti-Slipping Machine

ZDC30-2.2 Automatic Anti-Slipping Device , also known as inclined shaft anti-sports car installation device, is an important safety equipment for lifting and transporting inclined shafts in coal mines.

Introduction Of Rail Catcher Automatic Anti-Slipping Machine

ZDC30-2.2 Automatic Anti-Slipping Device , also known as inclined shaft anti-sports car installation device, is an important safety equipment for lifting and transporting inclined shafts in coal mines. It is installed in the underground inclined tunnel of the coal mine. The position sensor is used to obtain the control signal of synchronous operation with the winch, so that the parking network is at "Normally closed" protection state, such as a sports car accident caused by broken rope, decoupling, etc., can be effectively intercepted by a flexible buffer.



The ZDC30-2.2 Automatic Anti-Slipping Device consists of six parts: the status display, the electric control box, the car block, the rotary encoder, the pneumatic retractor and the trip unit for the sports car protection device.

Parameter Of Rail Catcher Automatic Anti-Slipping Machine

Conditions Of Use: Main Inclined Shaft Of Coal Mine.



Working Mode: Normally Closed, Input Voltage: AC127/380V,



Intercept Speed Setting: 5m/S,



Blocking Car Action Time: 3s,



Maximum Applicable Roadway Inclination: 30°,



Car Wire Rope: 6*37-FC-24 35m*4,



Impact Energy: 10*10J,



Winch Motor: YB2-90S-2 Type,



Power: 1.5KW,



Voltage: 0.4KV.

Photos Of Rail Catcher Automatic Anti-Slipping Machine

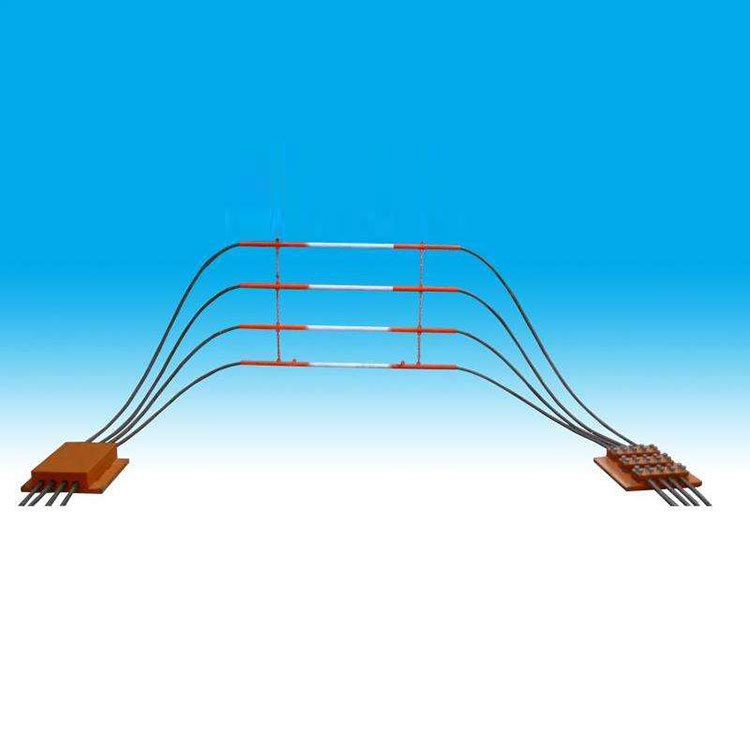

Rail Catcher Automatic Anti-Slipping Machine
Rail Catcher Automatic Anti-Slipping Machine
Rail Catcher Automatic Anti-Slipping Machine
