Mine Car Arrester Manual Car Stop

The manual car stop/arrester is designed to stop the moving mine car at a certain fixed location, and cooperate with the cart machine, the cradle, the safety door and other equipment to achieve the purpose of mechanization and automation.

Introduction of Manual Car Stop Manual Car Arrester Product :



The manual car stop/arrester is designed to stop the moving mine car at a certain fixed location, and cooperate with the cart machine, the cradle, the safety door and other equipment to achieve the purpose of mechanization and automation. The manual stop device can be divided into two types according to the line setting. The front stop is used for the limit of the mine to be loaded, and the rear stop is used to stop the train.

Main Structure of Manual Car Stop Manual Car Arrester Product:

There are two types of car stops: the anti-wheel type car stop and the hook type car stop. They are composed of a pair of claws, brackets, buffer mechanism and driving device. The difference is that the former is the wheel of the mine-blocking car, while the latter is the bumper, baffle or axle of the mine-blocking car.

Technical Parameters of Manual Car Stop Manual Car Arrester Product :

Model

ZCY-6

Power Type

Electro hydraulic Power

Gauge

7600mm

Allows Maximum Deformation Energy

7800 N.m

Maximum Displacement of the Claws Remarks

7800 N.m 100 mm

Applicable load

1t, 1.5t, 3t

Applicable various types

mine cars, flatbed trucks, material trucks and metal mines

ZCY-9

900mm

ZCQ-6

pneumatic 600mm

ZCQ-9

900mm

ZCS-6

manual 600mm

ZCS-9

900mm

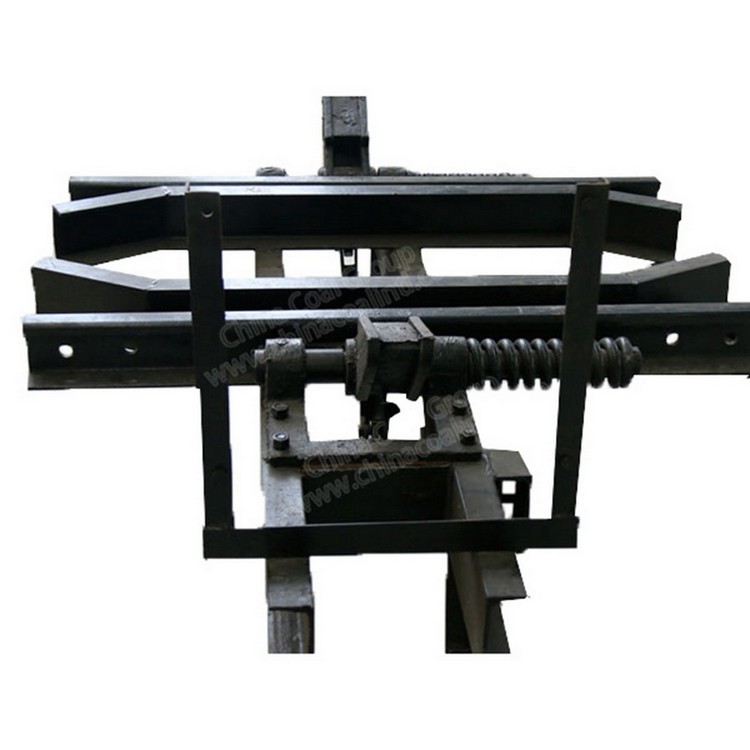

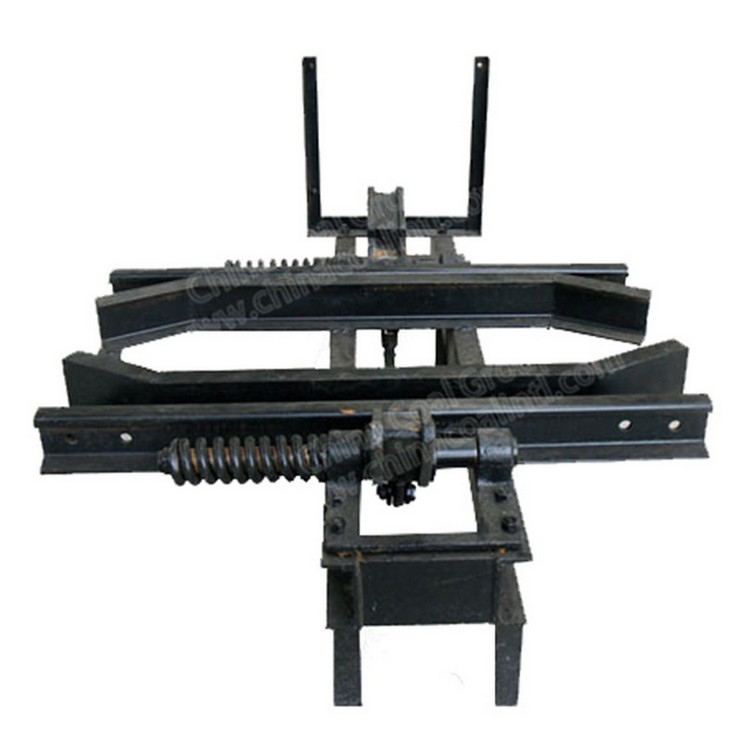

Photos Of Mine Car Arrester Manual Car Stop

Mine Car Arrester Manual Car Stop
Mine Car Arrester Manual Car Stop
