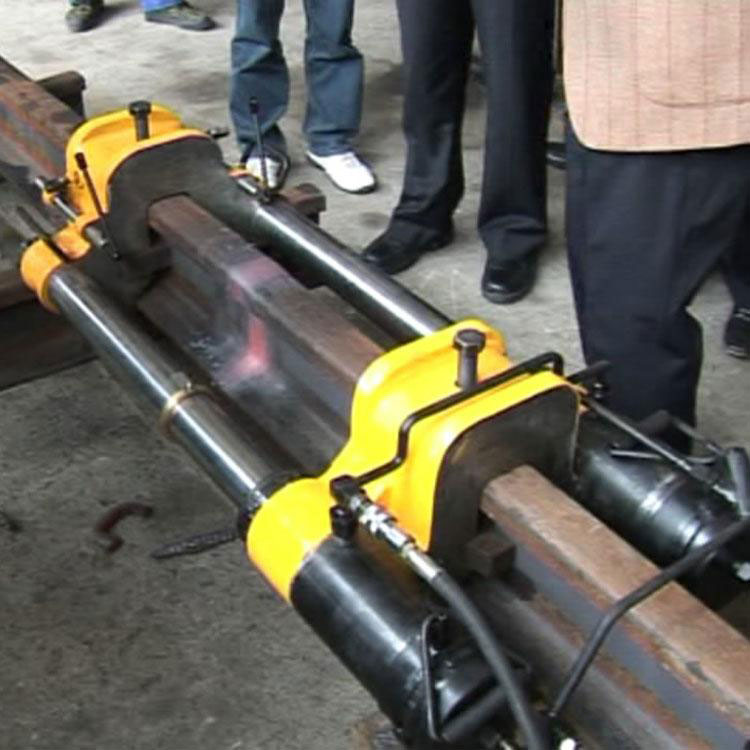

Orbital welding machine is used to weld rail. It adopts pressurized deburring mode.

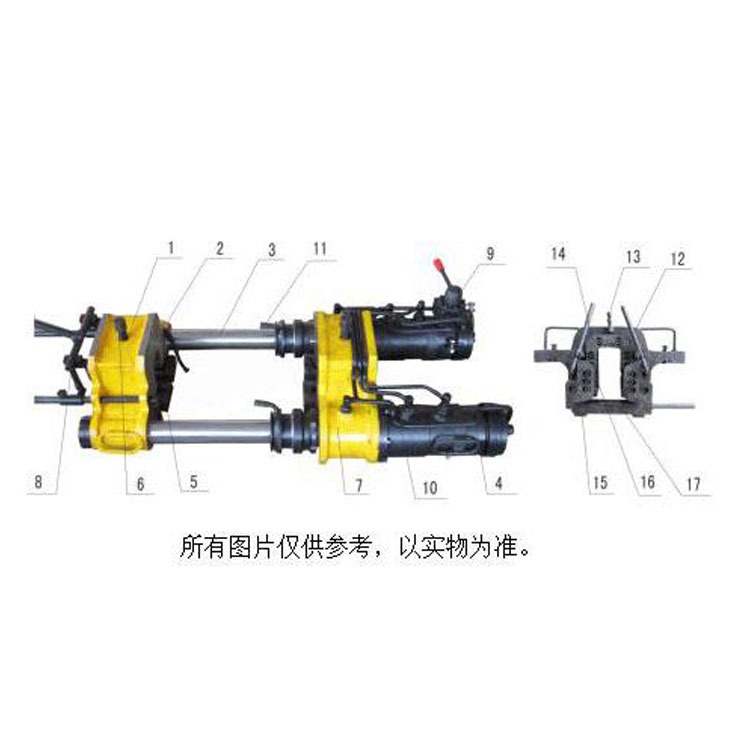

Orbital welding machine is used to weld rail. It adopts pressurized deburring mode. The press is rail bottom positioned to ensure the rail head straightness. The press is equipped with upsetting control valve to avoid delaying operation. Compared with the similar product, it features original conception, reasonable design and easy operation.
Model | YH-6 Mobile Rail Gas Pressure Welding Equipment Manual |
Dimension | 1320*635*330mm |
Material | stainless steel |
Color | yellow |
Application | rail tack welding |
1.press | ||
max. working stroke | 100mm | |
max.rated working pressure | 35Mpa | |
max. working pressure | 40Mpa | |
deburing unit max.working stroke | 120mm | |
deburring unit max.working pressure | 45MPa | |
deburring unit max.deburring force | 452kN | |
press weight | 230kg | |
press dimention | 1320*635*330mm | |
2. hydraulic pump station | ||
motor voltage | 380V | |
motor rpm | 1440r/min | |
pump flow | ≥4L/min | |
oil tank capacity | 20L | |
3. water pump | ||
type | YSB(AOB)-25 | |
voltage | 380V | |
flow | 25L/min | |
